Why choose our sanitary sample valves?
- 316L SS construction machined to less than 20 Ra.
- Pressure Rating: 300 PSI at 200˚F.
- Optional 45˚, 90˚ or Inline models with 1/2”, 3/4”, 1”,
1-1/2” and 2” Ferrule, 1/4” and 1/2″ NPT or weld body. - Aseptic process connection utilizing a zero dead leg and a Teflon port seal on inside front cover.
- 45 and 90 degree valves with sampling stems can be configured to point the mitered end with the “F” into the flow of the product. Stems continually flush with a hole at the base opposite the miter to provide a clean sample at any time. 1-1/8″ stems are intended for up to 1-1/2″ OD tube runs and 2″ for 2″ OD and larger.
- Complete cleaning is obtained inside of a stainless steel wash chamber with water circulated in the chamber via spray nozzles as well as through injectors directly inside of valves and dried via HEPA filtered drying. Cleanliness is maintained by assembling and packaging in an ISO 5 Class 100 environment.
- 3/8” Diameter Hose Barb product discharge.
-
Valve Washer
-
Packaging
-
Clean Room
-
Valve Assembly
-
Valve Laser
-
Profilometer
- Limited stem travel for safety.
- Solid Delrin® knob standard with 17-4 SS knob optional.
- Spare Parts and Repair/Maintenance Kits are available. SV&E valves are easily unassembled to be cleaned or maintained.
- Autoclavable assembled or unassembled.
- All valves are individually packaged and labeled.
- Certificate of Compliance and Material Certs are provided with each order.
- Electropolishing is available upon request.

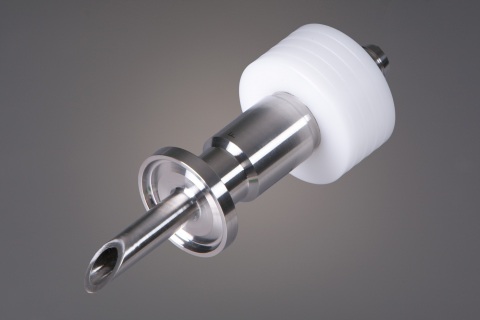

OFSVILF-1.13EXT
Inline 1/2 – 3/4″ Ferrule w/ 1-1/8″ Stem Extension

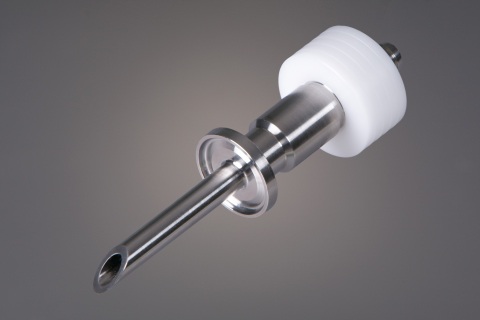

OFSVILF-2EXT
Inline 1/2 – 3/4″ Ferrule w/ 2″ Stem Extension
OFSV90F-1-1.3EXT-DN
90° 1/2 – 3/4″ Ferrule,
1-1/8″ Stem, Downward Flow

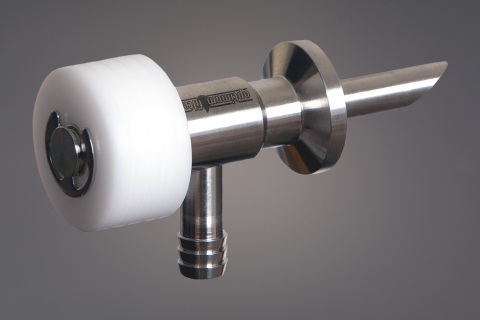

OFSV90F-1.3EXT-UP
90° 1/2 – 3/4″ Ferrule,
1-1/8″ Stem, Upward Flow

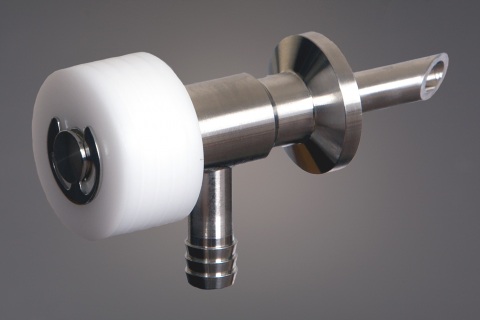

OFSV90F-1.13EXT-RL
90° 1/2 – 3/4″ Ferrule,
1-1/8″ Stem, Right to Left Flow

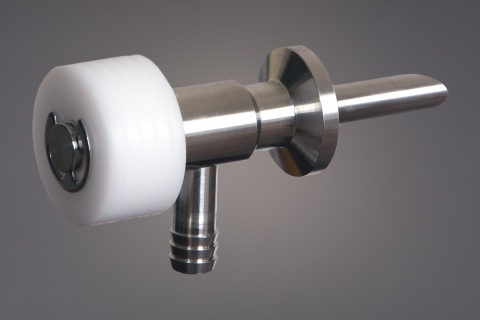

OFSV90F-1.13EXT-LR
90° 1/2 – 3/4″ Ferrule,
1-1/8″ Stem, Left to Right Flow

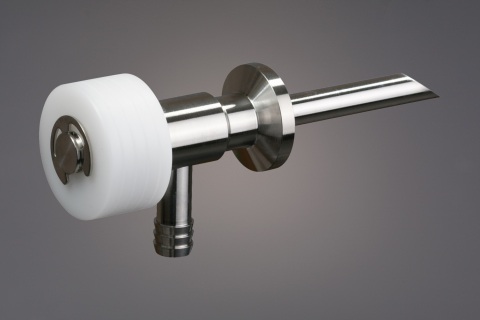

OFSV90F-2EXT-DN
90° 1/2″ – 3/4″ Ferrule,
2″ Stem, Downward Flow

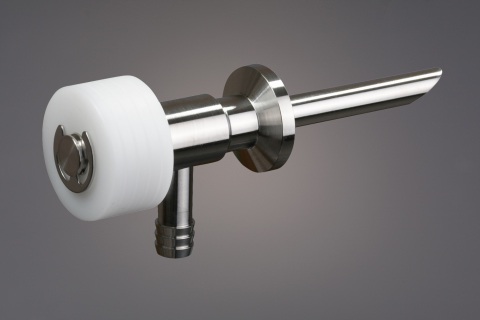

OFSV90F-2EXT-UP
90° 1/2″ – 3/4″ Ferrule,
2″ Stem, Upward Flow

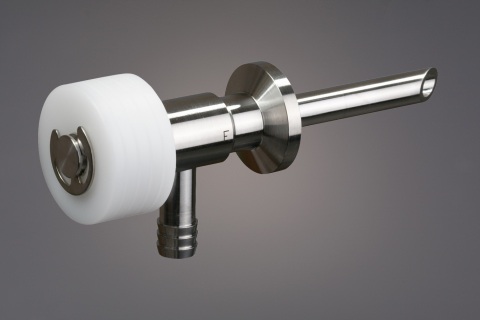

OFSV90F-2EXT-RL
90° 1/2″ – 3/4″ Ferrule,
2″ Stem, Right to Left Flow

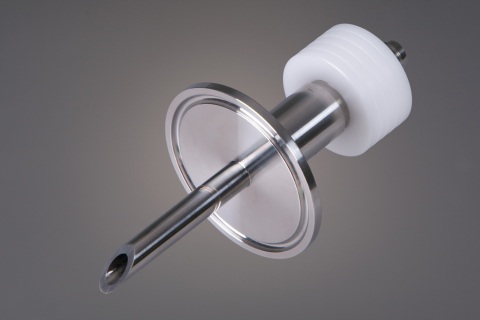

OFSVILF-1-2EXT
Inline 1″ – 1-1/2″ Ferrule w/ 2″ Stem Extension
OFSV90F-1-2EXT-RL
90° 1 – 1-1/2″ Ferrule,
2″ Extension, Right to Left Flow
OFSV90F-1-2EXT-LR
90° 1 – 1-1/2″ Ferrule,
2″ Stem, Left to Right Flow
OFSVILN-1.13EXT
Inline 1/4″ NPT w/1-1/8″ Stem Extension
OFSVILW-1.13EXT
Inline 1/4″ Weld w/1-1/8″ Stem Extension
OFSV901/2N-1.13EXT-LR
90° 1/2″ NPT 1-1/8″ Sampling Stem Left to Right Flow

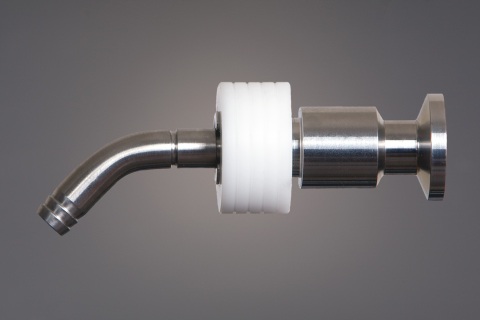

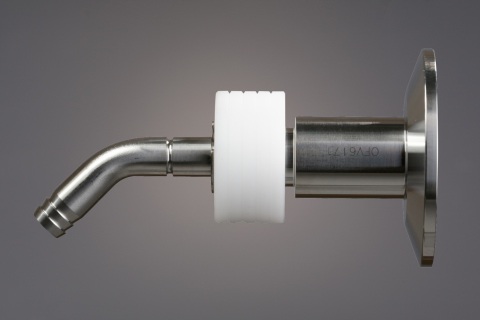

OFSV45F-2EXT-RL
45° 1/2″ – 3/4″ Ferrule 2″ Sampling Stem Right to Left Flow
OFSV451/2N-1.13EXT-LR
45 Deg 1/2″ NPT 1-1/8″ Sampling Stem Left to Right Flow
